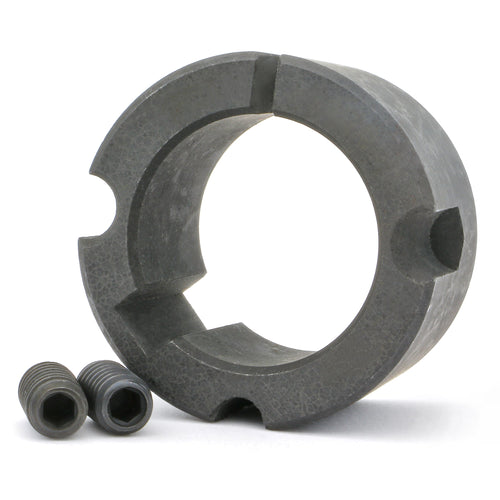

Clamp bushing 1008-12 with axle diameter Ø12 mm which is made of cast iron and fits for wedge straps, chain wheels, connections, welded hubs and pulleys with the same bushing series (1008).
✔ Insex screws are included
✔ High quality and performance
✔ Fast and easy mounting/disassembly
✔ Provides excellent tension for safe shoulder connection
| Specification | |
| Product | 1008-0Th Clamp bushing Ø12 |
| Manufacturer's article number | TB 1008-12 |
| Busing series | 1008 |
| Insex screws | 1/4 "x 1/2" |
| Torque | 136 Nm |
| Screwdriver torque | 5.6 Nm |
| Material | Cast iron |
| Dimensions | |
| Axle diameter (D1) | 12 mm |
| Outer diameter (D) | 35 mm |
| Width (s) | 22.3 mm |
| Wedge track width (b) | 5 mm |
 | |
