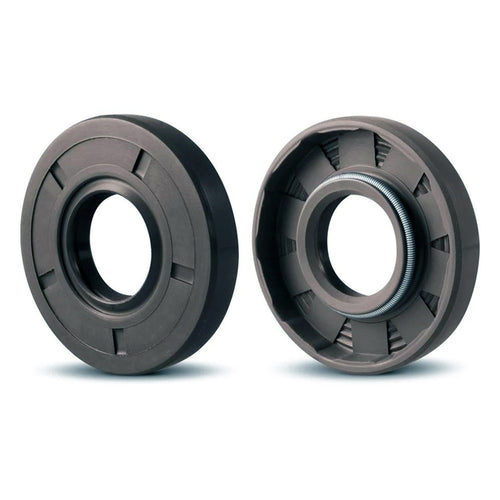

Radial seal (packing box) with spring and extra dust lip, made of nitrile rubber (NBR) with dimensions 100x110x12 mm.
Advantageously used together with hydraulic oils, vegetable oils, animal oils, acetylene, water, air, alcohol, fuels and many other media.
✔ Wide temperature range
✔ High and constant friction
✔ Resistant to oils and acids
✔ Very good dynamic properties
✔ High abrasion resistance, even at high temperature
✔ Extraordinary antistatic properties of black nitril rubber (with kimcker)
| Specification | |
| Product | Radial seal 100x110x12 TC (NBR) |
| Hardness | 70 ° Shore |
| Max pressure | 0.5 bar |
| Temperature range | -30 ° C to +100 ° C. |
| Material | Nitril rubber (NBR with steel spring |
| Dimensions | |
| Inner diameter (D1) | 100 mm |
| Outer diameter (D) | 110 mm |
| Width (b) | 12 mm |
 |
|
| Stubborn table - Nitrile rubber (NBR) |
|
|
Very good ✔✔✔ Good ✔✔ Good ✔ Bad x |
|
| Acetaldehyde |
✔ |
| Acetamide | ✔✔✔ |
| Acetone | X |
| Acetylene | ✔✔✔ |
| Aluminum acetate | ✔✔ |
| Aluminum chloride | ✔✔✔ |
| Amoniak | ✔✔ |
| Ammonium chloride | ✔✔✔ |
| Ammonium hydroxide | X |
| Amyl acetate | X |
| Aniline | X |
| ASTM oil 1 | ✔✔✔ |
| ASTM oil 3 |
✔✔✔ |
| Benzene | X |
| Butane | ✔✔✔ |
| Butyl alcohol | ✔✔✔ |
| Benzoic acid | X |
| Citric acid | ✔✔✔ |
| Decalin | X |
| Dibensylets | X |
| Dibutylftalalate | X |
| Dimethylformamide | ✔✔ |
| Ethane | ✔✔✔ |
| Ethanol | ✔ |
| Ethyl chloride | ✔✔✔ |
| Ethylets |
✔ |
| Ethylene chloride | X |
| Ethylene glycol | X |
| Formaldehyde | ✔ |
| Freon 12 | ✔✔ |
| Freon 22 | X |
| Phenol | X |
| For example | ✔✔ |
| Kerosene | ✔✔✔ |
| Glucose | ✔✔✔ |
| Glycerin | ✔✔✔ |
| Heptane | ✔✔✔ |
| Hexan | ✔✔✔ |
| Hydraulic oil (petroleum based) | ✔✔✔ |
| Isoktan | ✔✔✔ |
| Isopropanol | ✔✔ |
| Calcium chloride | ✔✔✔ |
| Calcium hydroxide | ✔✔✔ |
| Calcium sulfide | ✔✔✔ |
| Carbon disulfide | X |
| Carbon tetrachloride | ✔✔ |
| Chlorine (wet) | X |
| Chlorine (dry) | X |
| Chloroform | X |
| Chromic acid | X |
| Creosote | ✔✔✔ |
| Nitrogen | ✔✔✔ |
| Potassium nitrate | ✔✔✔ |
| Methane | ✔✔✔ |
| Methanol | ✔✔✔ |
| Methyl alcohol | ✔✔✔ |
| Methyl chloride | X |
| Methylethyl ketone | X |
| Methylene chloride | X |
| Naphtha | ✔✔ |
| Nitrobenzen | X |
| Sodium carbonate | ✔✔✔ |
| Sodium chloride | ✔✔✔ |
| Sodium hydroxide | ✔✔ |
| Oleum | X |
| Oxalic | ✔✔ |
| Propane | ✔✔✔ |
| Ricin oil | ✔✔✔ |
| Stearic acid | ✔✔ |
| Sulfuric acid (concentrated) | X |
| Oxygen (cold) | ✔✔ |
| Oxygen, 93-204 ° C. | X |
| Hydrochloric acid 37% cold | ✔ |
| Nitric acid | X |
| Silicone oil | ✔✔✔ |
| Tetrachloroetan | X |
| Tetralin | X |
| Toluen | X |
| Trietanolamine | ✔ |
| Turpentine | ✔✔✔ |
| Hydrogen | ✔✔✔ |
| Hydrogen peroxide | ✔✔ |
| Water | ✔✔✔ |
| Xylene | X |
| Steam, below 176 ° C. | X |
| Acetic acid | ✔✔ |
| Restrictions | Should not be exposed to high -polar solvents such as acetone, MEK, chlorinated hydrocarbons and nitrok hydrocarbons, which are known to cause a rapid and extreme degradation. Further restrictions for the use of Nitril are applications with direct sunlight and ozone exposure |
