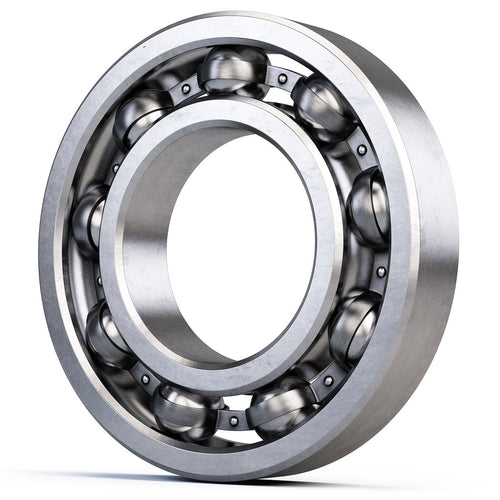

Open ball bearing 214/C3 in unsealed design from the manufacturer SKF with dimensions 70x125x24 mm. The ball bearing has a larger bearing clearance than normal (C3).
Open ball bearing 214/C3 in unsealed design from the manufacturer SKF with dimensions 70x125x24 mm. The ball bearing has a larger bearing clearance than normal (C3).
SPECIFICATION
| Product | 214/C3 SKF Ball bearing 70x125x24 |
| Manufacturer | SKF |
| Manufacturer's article number | 214/C3 |
| Stock game |
C3 - Greater Stock Game Than Normal |
| Sealing | Open |
| Ball holder | Pressed steel holder |
| Material | Bearing steel |
| Friction | No |
| Temperature range | -20°C to +120°C |
| Weight | 1150 g |
| Carrying capacity Dynamic ( C ) | 66 kN |
| Bearing capacity Static ( C0 ) |
65.5 kN |
| Reference speed | 9,500 r/min |
| Limit speed | 5,600 r/min |
Surname (Suffix)
C3 - Larger radial clearance than normal.
DIMENSIONS
| Inner diameter ( d ) |
70 mm |
| Outer diameter ( D ) |
125 mm |
| Width ( B ) |
24 mm |
| d1 ≈ | 87.05 mm |
| D2 ≈ | 111 mm |
| r1.2 | my. 1.5 mm |
ALTERNATE ITEM NUMBERS
214/C3 214-C3 214C3 214 C3
Benefits
- Smooth
- High quality and performance
- Extended Lifespan
- Maintenance free
- Temperatures up to +120°C
