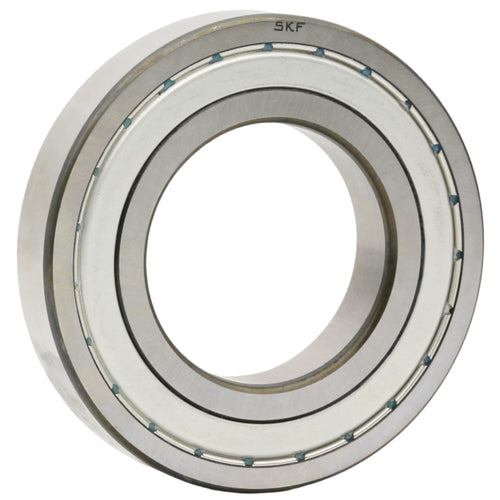

Ball bearing 208-2Z from the manufacturer SKF with dimensions 40x80x18 mm. The ball bearing has filler grooves and frictionless protective plates on both sides of the bearing.
✔ Maintenance free
✔ Fill track
✔ Extended Lifespan
✔ Retains the lubricating grease
✔ Friction-free protective plates
✔ High quality and performance
✔ Temperatures up to +150°C
| Specification | |
| Product | 208-2Z SKF Ball bearing 40x80x18 |
| Manufacturer | SKF |
| Manufacturer's article number |
208-2Z |
| Stock game | CN - Normal (Default) |
| Temperature range | -30°C to +150°C |
| Loading | Radial and axial loads in both directions |
| Reference RPM | rpm |
| Limit speed | rpm |
| Load capacity Dynamic (C) | kN |
| Bearing capacity Static (C0) | kN |
| Weight | g |
| Dimensions | |
| Inner diameter ( d ) | 40 mm |
| Outer diameter ( D ) | 80 mm |
| Width (B ) | 18 mm |
 |
|
| Surname (Suffix) | |
| 2Z | The ball bearing has protective plates on both sides of the bearing. |
| Material | |
| Inner ring | Bearing steel |
| Outer ring | Bearing steel |
| Bullets | Bearing steel |
| Ball holder | Plate |
| Sealing Low Friction High RPM Retention of Fat Protection against Dust Protection against Water Static Dynamic High pressure |
Plate Excellent ✔ ✔ ✔ Excellent ✔ ✔ ✔ Acceptable ✔ Acceptable ✔ Not recommended Not recommended Not recommended |
